Smart Charging Pile

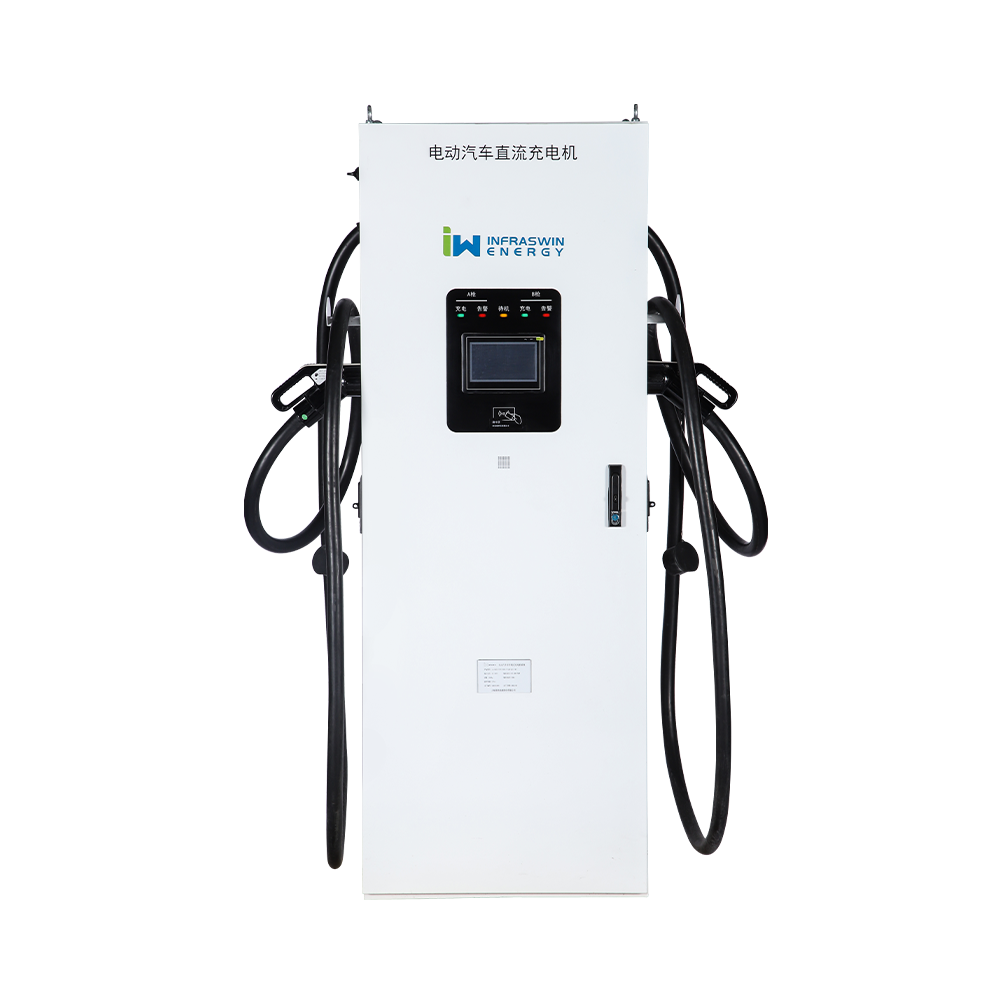

Infraswin Energy smart Charging Point is designed for electric vehicle charging, supporting both DC and AC charging with a power range of 7kW to 160kW. It features advanced 4G communication capabilities and offers comprehensive billing functions. This versatile solution comes in various specifications, including wall-mounted and pole-mounted structures, catering to diverse needs in different scenarios. Operating flawlessly within the temperature range of -20°C to 50°C at an altitude of up to 2000 meters, this charging station boasts IP54/IP65 protection levels.?

Product Overview

Feature
  • Reliable Performance
  • Safe Use
  • Customized
  • Easy Operation


Product Performance Standards
  • NB/T 33008.1-2018 ? 《Inspection and Testing Requirements for Electric Vehicle Charging Equipment - Part 1: Non-vehicle Chargers》
  • NB/T 33001-2018 ?《Technical Requirements for Non-vehicle Inductive Charging of Electric Vehicles》
  • GB/T 18487.1-2015 《Electric Vehicle Conductive Charging System - Part 1: General Requirements》
  • GB/T 34657.1-2017 ?《Interoperability Testing Specification for Electric Vehicle Conductive Charging - Part 1: Supply Equipment》
  • Q/GDW 10591-2018 《Inspection and Testing Requirements for Non-vehicle Chargers for Electric Vehicles》
  • Q/CSG 1211013-2016 《Inspection and Testing Requirements for Non-vehicle Chargers for Electric Vehicles》?
  • Q/GDW 10233-2018 《General Requirements for Non-vehicle Chargers for Electric Vehicles》?


Product Parameter

??Model

GDES-750V/30kw

GDES-750V/60kw

GDES-750V/120kw

GDES-750V/160kw

Gdes-ac007d

Rated?power

30kw

60kw

120kw

160kw

7kw

Output?voltage?range

Dc200~750v

Ac220v

Max?output?current

90a

150a

402a

536a

0~32a

Input?voltage

380vac

Ac220v±15%

Input?voltage?range

304~456vac

Ac220v±15%

Input?frequency?range

45~65hz

45~55hz

Billing?method

DC?meters?

AC?metering

Communication?interface

4G?(optional)?

4G?(optional)

Size

Width?620mm?*?depth?300mm?*?height?1200mm

Width?700mm?*?depth?600mm?*?height?1900mm?

Width?326mm?*?depth?300mm?*?height?160mm?(excluding?column)

Charging?cable?and?length

Single?gun,?3.5?meters?long

Double?gun,?4?meters?long

Double?gun,?5?meters?long

Double?gun,?5?meters?long

Single?gun,?3.5?meters?long

Net?weight

252kg

294kg

378kg

462kg

5kg?(without?column)

Plug?connector

Gb/t?20234、css

Gb/t?20234、css

Gb/t?20234、css

Gb/t?20234、css

Gb/t

Working?environment

Below?2000m?above?sea?level,?-20°C~50°C

Below?2000m?above?sea?level,?-20°C~50°C

Protection?Ratings

IP54

IP65

Technical characteristics reported here are for illustration purposes only.?
Actual configuration and performance may vary based on Customer requirements.?
